27.07.2016

Novel state of matter: Observation of a quantum spin liquid

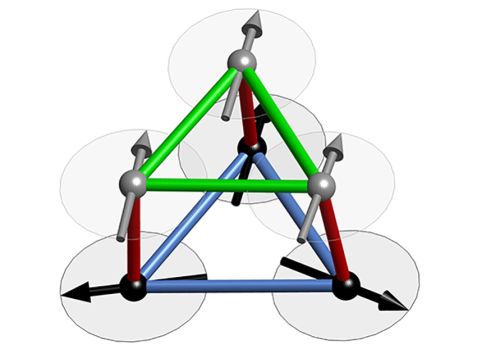

Crystal lattice with conflicting spins. Crystal lattice with conflicting spins. A section from the crystal lattice of Calcium-chromium oxide showing how the spins are subject to conflicting demands. In this ball-and-stick model, the green and red sticks connecting the atoms (grey and black balls) represent ferromagnetic interactions while the blue sticks represent anti-ferromagnetic interactions.

A novel and rare state of matter known as a quantum spin liquid has been empirically demonstrated in a monocrystal of the compound calcium-chromium oxide. What is remarkable about this discovery is that according to conventional understanding, a quantum spin liquid should not be possible in this material. A theoretical explanation for these observations has now also been developed. This work deepens our knowledge of condensed matter and might also be important for future developments in quantum information. Neutron measurements have also been performed at the time of flight spectrometer from Technical University of Munich, TOFTOF. The results have just been published in Nature Physics.

Based on our everyday experience, we expect matter at low temperatures to freeze solid with the atoms fixed in a regular arrangement. The magnetic moments arising from the spins of the electrons on the atoms in magnetic materials, also come to rest and become rigidly oriented as temperature falls. However, there are some rare exceptions. In what are referred to as quantum spin liquids, the orientations of the electronic spins do not remain fixed even at temperatures near absolute zero. According to conventional understanding, if the interactions are isotropic (where all spin directions are possible), this phenomenon can occur if the spins are arranged in triangular geometries and the interactions between them are antiferromagnetic favouring antiparallel alignment of the spins. For three atoms forming the corners of a triangle, the electronic spin of one atom cannot simultaneously be oriented antiparallel to those on both the other two atoms. In real materials that contain triangular units coupled by antiferromagnetic interactions this “frustration” can prevent the spins from coming to rest in a particular orientation even at absolute zero temperature, instead they move collectively like atoms in a liquid. By contrast, ferromagnetic interactions do not give rise to frustration in isotropic magnets because mutually parallel alignment of the spins can always occur. For these reasons, only a few isotropic materials have been proposed as spin liquid candidates.

Now a team headed by Prof. Bella Lake from the Helmholtz Zentrum Berlin has produced and investigated the first monocrystals of calcium-chromium oxide (Ca10Cr7O28). Calcium-chromium oxide is made up of what are known as Kagomé lattices – reminiscent of the pattern of triangles and hexagons woven in Japanese basketry. As a result, a complex set of isotropic magnetic interactions develop in this material, consisting of not only anti-ferromagnetic interactions but also much stronger ferromagnetic interactions that according to conventional understanding should prevent the existence of spin liquid behavior. The experimental characterization has however shown that the spins in these samples retain their collective motion even at temperatures as low as 20 millikelvin and behave like a quantum spin liquid. The study required a series of neutron scattering and muon spectroscopy measurements, and therefore an excellent ability to exploit the complementarity of instruments located at different large-scale facilities all over the world.

First measuements at MLZ
The first neutron scattering investigation took place on a polycrystalline sample at the TOFTOF instrument at the Heinz Maier-Leibnitz Zentrum (MLZ) with Dr. Giovanna Simeoni and provided the first insight into this unusual behavior. This served to identify the exact scientific questions and allowed the optimum experimental approach to be designed of the complete research project. “The accuracy and the reliability of the result, confirmed by the subsequent monocrystalline studies, followed from the long instrumental development that Dr. Simeoni devoted to inelastic neutron scattering and magnetism at extreme conditions (here the cryogenic equipment for very low temperatures)”, states Bella Lake.

Theoretical physicist Prof. Johannes Reuther of HZB has now been able to extend the theoretical model of spin liquids with the help of these experimental clues. He has used numerical simulations to show how the different magnetic interactions in calcium-chromium oxide compete with one another and keep the spins dynamic.

“We have proved empirically that interesting quantum states like spin liquids can also occur in considerably more complex crystals with different constellations of magnetic interactions”, says Dr. Christian Balz, lead author of the work. Lake also explains: “The work expands our understanding of magnetic materials, and also shows us that there are potentially far more candidates for spin liquids than expected. This could be important for the advancement of quantum computers in the future because spin liquids are one of the possible building blocks for carrying the smallest unit of quantum information, known as a qubit.”
Text: Helmholtz-Zentrum Berlin

Original publication:
Physical realization of a quantum spin liquid based on a novel frustration mechanism
Christian Balz, Bella Lake, Johannes Reuther, Hubertus Luetkens, Rico Schönemann, Thomas Herrmannsdörfer, Yogesh Singh, A.T.M. Nazmul Islam, Elisa M. Wheeler, Jose A. Rodriguez-Rivera, Tatiana Guidi, Giovanna G. Simeoni, Chris Baines, Hanjo Ryll
Nature Physics (2016, DOI: 10.1038/nphys3826
